Smoke-testing the notification pipeline against real SLURM

Manual procedure for verifying ActiveWatchPoller → DeliveryPoller → SlackWebhookDeliveryAdapter end-to-end on a real SLURM cluster. Run this before cutting a release that touches the srunx.observability.monitoring.pollers / srunx.observability.notifications modules.

Estimated wall time: ~15 minutes.

Prerequisites

  • An SSH profile configured for a reachable SLURM cluster (srunx ssh profile list shows it as current).
  • A Slack Incoming Webhook URL you own — the adapter POSTs to it during the test, so use a test channel.
  • Local Python env with the latest changes installed: uv sync && uv run srunx --version.
  • This procedure assumes PR #84 (srunx sbatch --endpoint) and PR #85 (poller payload enrichment including job_id / job_name) are both merged. If they are not yet on main, skip to the "Pre-#84 fallback" note below before running step 4.

Procedure

  1. Isolate the state DB. The pollers will write to ~/.config/srunx/srunx.observability.storage. To keep the smoke clean:

    export XDG_CONFIG_HOME="$(mktemp -d)"

  2. Register an endpoint. Either via the Web UI (Settings → Notifications) or the API:

    curl -s http://127.0.0.1:8000/api/endpoints \
  -H 'content-type: application/json' \
  -d '{"kind":"slack_webhook","name":"smoke","config":{"webhook_url":"<YOUR_URL>"}}'

  3. Start the Web UI with pollers enabled. (Never use --reload during this test — the reload guard will skip poller startup.)

    uv run srunx ui --port 8000
    The banner should say ● connected.

  4. Submit a quick job via the CLI with an endpoint subscription. Use --preset all — the job.submitted event is only delivered under preset='all' (see srunx/notifications/presets.py; terminal and running_and_terminal will skip the first Slack message and only deliver once the job reaches RUNNING / COMPLETED):

    uv run srunx sbatch --wrap "\"
  bash -c 'echo hi && sleep 10' \
  --name smoke --endpoint smoke --preset all
    Verify in the server logs that Starting 2 background poller(s) appeared at startup.

Pre-#84 fallback. If this branch hasn't merged yet, create the watch + subscription manually instead of relying on --endpoint:

# 4a. Submit with the legacy --slack flag (uses SLACK_WEBHOOK_URL env)
SLACK_WEBHOOK_URL='<YOUR_URL>' uv run srunx sbatch --wrap "\"
  bash -c 'echo hi && sleep 10' --name smoke --slack
# 4b. Grab the returned SLURM job id and create a watch+sub:
curl -s http://127.0.0.1:8000/api/watches \
  -H 'content-type: application/json' \
  -d '{"kind":"job","target_ref":"job:<JOB_ID>"}'
# Then POST /api/subscriptions with the watch_id + endpoint_id + "all".

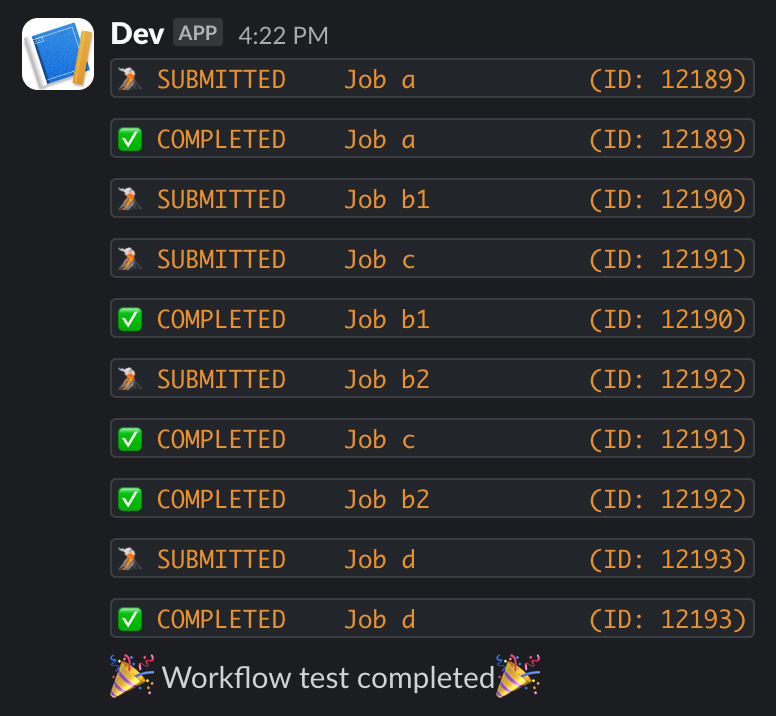

  1. Expected Slack messages (chronological, typically within ~30 s each). A delivered message looks like:

Slack notification example

The job_id / job_name keys are only present once PR #85 has landed; before that, the Slack adapter falls back to parsing the id out of source_ref, rendering Name: ?:

Event Slack block Payload keys (post-#85)
job.submitted *Job submitted* job_id, job_name
job.status_changed PENDING → *RUNNING* job_id, job_name, from_status, to_status, started_at, completed_at
job.status_changed RUNNING → *COMPLETED* same

The Notifications Center (at http://127.0.0.1:8000/notifications) walks through three states during this test — it should look like:

=== "Empty"

   ![Empty notifications center](../assets/images/notifications-center-empty.png)

=== "Populated"

   ![Populated notifications center](../assets/images/notifications-center-populated.png)

=== "Filter: delivered"

   ![Delivered filter applied](../assets/images/notifications-center-filter-delivered.png)

  1. Verify persistence. Before inspecting, stop the web server (Ctrl+C) and reopen the DB directly:

    sqlite3 "$XDG_CONFIG_HOME/srunx/srunx.observability.storage"
sqlite> SELECT id, status, attempt_count, delivered_at FROM deliveries;
sqlite> SELECT from_status, to_status, source FROM job_state_transitions;
    All deliveries should be delivered, and the transition log should contain exactly one (None, PENDING, source='webhook') row followed by the poller-sourced transitions.

  2. Reload guard check. Restart the server with --reload:

    UVICORN_RELOAD=1 uv run uvicorn srunx.web.app:create_app --factory --reload
    The server log should say Background pollers disabled (reload mode or SRUNX_DISABLE_POLLER=1).

Troubleshooting

  • Slack says "no_active_hooks": the webhook URL is malformed or the app was removed from the workspace.
  • Job.status_changed event never fires: check that the seed job_state_transitions row is present for the job (step 6 query). Without it, the poller treats its first observation as "unknown prior state" and skips the event on purpose.
  • Stuck pending deliveries: SELECT * FROM deliveries WHERE status='pending' AND next_attempt_at <= strftime('%Y-%m-%dT%H:%M:%fZ','now'); should return 0 rows after a minute. If not, the DeliveryPoller may be disabled — check SRUNX_DISABLE_DELIVERY_POLLER.
